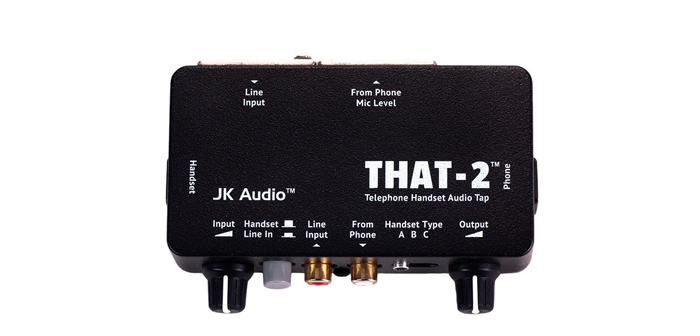

THAT-2

Telephone Handset Audio Tap

RCA & XLR Input/Output
Input/Output Level Controls
Passive Design

Tap Your Phone with XLR Jacks.

Connect THAT-2 between your telephone and handset for quick access to audio in and out of the telephone. The THAT-2 is used by radio stations to record and play sound bytes, and by TV and film sound crews to get IFB dialog over phone lines.

Learn More Details Specs

Product Details

Featured Products
QT	QuickTap
T1	THAT-1
T2	THAT-2
VP	Voice Path

Features	QT	T1	T2	VP
Works with Analog, Digital, PBX, or VoIP Telephones
1/8" (3.5mm) Mono Audio Input
1/8" (3.5mm) Mono Audio Output
RCA Input & Output
XLR Input & Output
Input Level Control
Output Level Control
Switch Selects Between Carbon, Dynamic or Electret Handset Types
Passive Design. No Battery or AC Required
Made in America
Approved for Sale in Europe and Australia

Record and
Play Audio Clips

Simply unplug the handset coily cord form the base of your telephone and plug it directly into the THAT-2. Then, using the supplied cable, connect the THAT-2 back to the telephone. Now connect your audio equipment or powered speaker to the RCA or XLR jacks. The grey pushbutton selects which audio will be sent into the telephone (Out = talking on the handset, In = sending audio in through the RCA jack). The output jacks contains a nice mix of the audio from both sides of the conversation, as well as the tones being pressed on the keypad.

Phone Compatibility

The THAT-2 has a three-position switch which accommodates electret, dynamic and carbon telephone handset microphone types. The THAT-2 will emulate the type of microphone that is in the handset and allow you to send audio into many different types of analog and digital PBX sets, as well as ISDN telephones. THAT-2 does not work with cordless or cell phones, or any telephone with a keypad in the handset.

Specs

Tech Reports
	Recording Telephone Interviews

Downloads
	Datasheet (124 kb)
	User Guide (289 kb)

Specifications
Line Input	RCA
Impedance	600-9000 ohms
Level	250 mV RMS (+12 dBu nom)
Line Input	Female XLR
Impedance	600-9000 ohms
Level	250 mV RMS (+12 dBu nom)
Output	RCA
Impedance	0-2500 ohms
Level	100 mV RMS (-18 dBu nom)
Output	Male XLR
Impedance	0-2500 ohms
Level	100 mV RMS (-18 dBu nom)
Misc
Handset Type	Electret, Dynamic, Carbon
Handset and Telephone Connectors	RJ22
Size	4.5" x 3.2" x 1.3" (11.4 x 8.2 x 3.3 cm)
Weight	9 oz
