RIU-IP

Remote IP Interface

Remote Control of innkeeper Digital Hybrids via the Web.

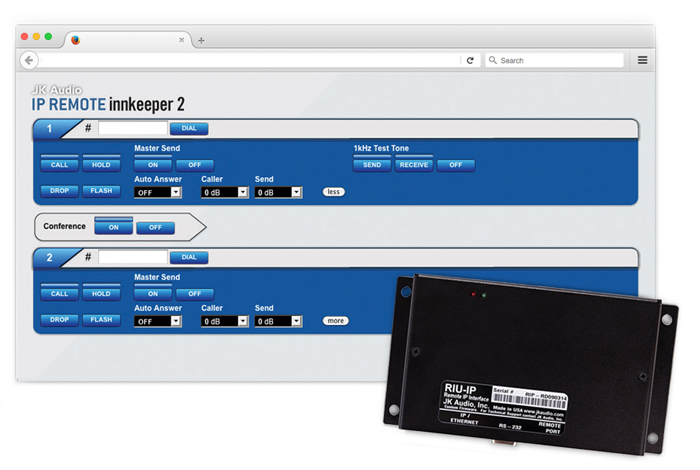

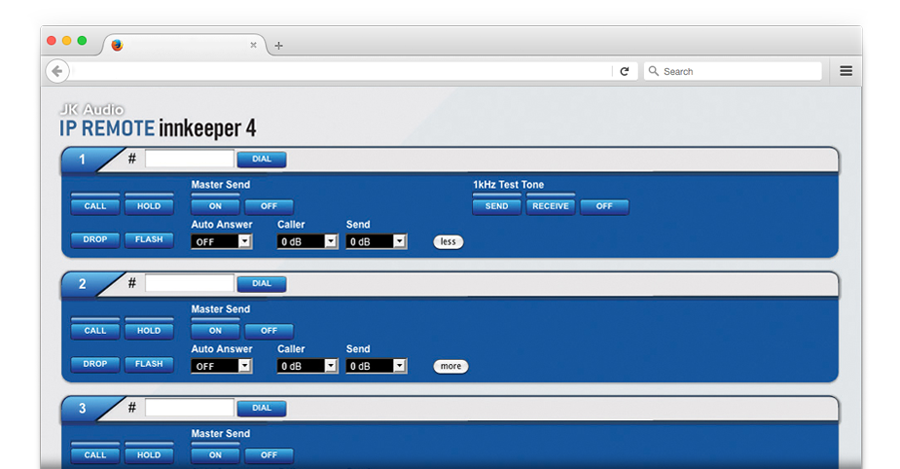

The RIU-IP is a remote control interface designed for the innkeeper 1rx, innkeeper 2, and innkeeper 4 digital hybrids. This unit contains a web server which allows the user to send and receive control data through their web browser.

Learn More Details Specs

Find a Dealer

Product Details

Features
Compatible with innkeeper 1x/1rx, innkeeper 2 and innkeeper 4 Digital Hybrids
Ring Indicator for Each Line
Call, Drop, Hold, Flash
Dialing
Conference (innkeeper 2 Only)
Adjust Transmit and Receive level per line (innkeeper 2 & 4 Only)
Auto-Answer on/off
Auto-Answer Ring Count (innkeeper 2 & 4 Only)
Test Tone Start/Stop per Line
Master Send Configuration (innkeeper 2 & 4 Only)
Presence On/Off (innkeeper 1x/1rx Only)
Caller Ducking On/Off (innkeeper 1x/1rx Only)
Automatic Gain Control on/off (innkeeper 1x/1rx Only)
Made in America
Approved for Sale in Europe and Australia

Access Points

RIU-IP can be connected to the user’s computer NIC card for direct control, to a switch or hub for network control, or to an ethernet port with internet access for control from anywhere in the world.

Specs

Downloads
	Datasheet (164 kb)
	User Guide (541 kb)

Specifications
Connection
Control Connection	RJ-45 Ethernet Port
Digital Hybrid Connection	RJ-50
RS-232 Serial Connection	DB-9
Dimensions
Size	5" x 3.25" x 1.125" ( 13 x 9 x 3 cm)
Weight	1 lb. (450 g)
