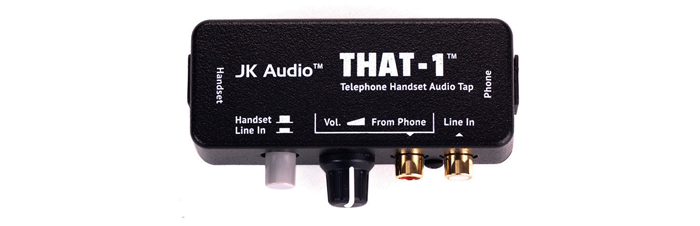

THAT-1

Telephone Handset Audio Tap

RCA Input & Output
Output Level Control
Passive Design

Tap Your Phone with RCA Jacks.

Connect THAT-1 between your telephone and handset for quick access to audio in and out of the telephone. The THAT-1 is used by radio stations to record and play sound bytes, and by computer and telephone companies to demonstrate their computer voice services using a powered speaker.

Learn More Details Specs

Product Details

Featured Products
QT	QuickTap
T1	THAT-1
T2	THAT-2
VP	Voice Path

Features	QT	T1	T2	VP
Works with Analog, Digital, PBX, or VoIP Telephones
1/8" (3.5mm) Mono Audio Input
1/8" (3.5mm) Mono Audio Output
RCA Input & Output
XLR Input & Output
Input Level Control
Output Level Control
Switch Selects Between Carbon, Dynamic or Electret Handset Types
Passive Design. No Battery or AC Required
Made in America

Record and
Play Audio Clips

Simply unplug the handset coily cord from the base of your telephone and plug it directly into the THAT-1. Then, using the supplied cable, connect the THAT-1 back to the telephone. Now connect your audio equipment or powered speaker using the RCA jacks. The grey pushbutton selects which audio will be sent into the telephone (Out = talking on the handset, In = sending audio in through the RCA jack). The output RCA jack contains a nice mix of the audio from both sides of the conversation, as well as the tones being pressed on the keypad. The volume control adjusts the volume of the signal going to your powered speaker or tape recorder.

Phone Compatibility

The THAT-1 will work with many different types of analog and digital PBX and ISDN telephones. The receive side of the THAT-1 (audio From Phone), will work on any telephone. To send audio into the telephone (To Phone), the telephone must have an electret type microphone in the handset. If your telephone has a round mouthpiece, or if you intend to use this product on many different telephones, you should consider our model THAT-2 which is compatible with a variety of telephone systems. THAT-1 does not work with cordless or cell phones, or any telephone with a keypad in the handset.

Specs

Tech Reports
	Recording Telephone Interviews

Downloads
	Datasheet (118 kb)
	User Guide (197 kb)

Specifications
Line Input	RCA
Impedance	20k ohms
Level	250 mV RMS (+12 dBu nom)
Line Output	RCA
Impedance	2800 ohms
Level	100 mV RMS (-16 dBu nom)
Misc
Handset Type	Electret
Handset and Telephone Connectors	RJ22
Size	3.7" x 1.6" x 1.3" (9.4 x 4.1 x 3.3 cm)
Weight	6.1 oz
