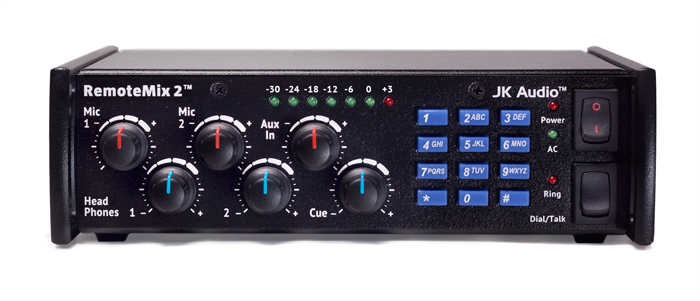

RemoteMix 2

Broadcast Field Mixer

2 Mic Inputs & 2 Headphone Jacks
Phone Line Hybrid
Wireless Phone Interface
HD Voice (Wide-Band Speech)

The Handy, Compact Mixer.

RemoteMix 2 is a two-channel field mixer / headphone amplifier built for the remote broadcast environment. More than just a field mixer, RemoteMix 2 provides a communications interface for remote broadcast, IFB, or a backup audio path. The integrated headphone amplifier provides sidetone to monitor all inputs plus an external feed. RemoteMix 2 features a phone line hybrid with keypad along with a wired notebook/cell phone headset interface. All sections are designed to work together, saving setup time and wiring in the field.

Learn More Details Specs

Product Details

Featured Products
2	RemoteMix 2
3.5	RemoteMix 3.5
4	RemoteMix 4

Features	2	3.5	4
HD Voice Compatible (7 kHz Wide-Band Speech)
Works with Analog and Digital PBX or VoIP Phones
Connects to Wireless Phones & Notebooks
Bluetooth Wireless Technology
4-conductor 3.5mm Headset Interface
XLR Mic Jacks	2	3	4
Mic/Line Pad Switch
Individually Switchable 48v Phantom Power
¼” Headphone Jacks with Individual Level Controls	2	3	4
Individual Headphone Source Selector
3.5 mm Send and Receive Jacks
LED VU Meter
Phone Line Hybrid with DTMF Keypad
Redial Button
Handset Selector Switch (Electret, Carbon, Dynamic)
Bass Boost
Hot Swappable Dual 9V Batteries and 120-240 VAC External Power Supply
Made in America
Approved for Sale in Europe and Australia

TV

RemoteMix 2 Combines a small front-end mixer with two powerful 1/4” headphone outputs. Send and receive interview audio while pulling IFB off the phone line, cell phone, or notebook.

Radio

Use it as a front-end mixer for your POTS, VoIP or smart phone codec. Or, use it as a phone line hybrid, calling in to your studio talk show hybrid.

Specs

Tech Reports
	HD Voice Primer
	Wireless Phone Compatibility
	About Bluetooth Wireless Technology

Downloads
	Datasheet (239 kb)
	User Guide (237 kb)

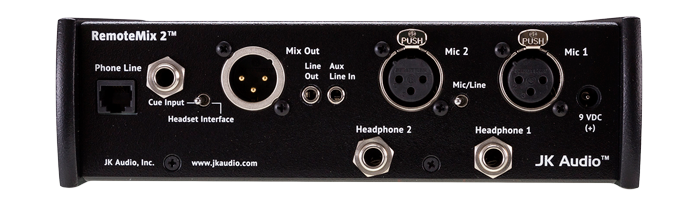

Specifications
Microphones	Female XLR
Impedance	2k ohms
Level	-25 dBu nom
Mic/Line Pad Switch	+6 dBu max
Aux Line In	1/8" (3.5mm) Stereo
Impedance	20k ohms
Level	-10 dBu nom
Cue Input	1/4" Mono
Impedance	20k ohms
Level	-10 dBu nom
Mix Out	Balanced Male XLR
Level	+16 dBu max
Frequency Response	20 Hz - 20 kHz +/- 1dB
Line Out	1/8" (3.5mm) Stereo
Impedance	100 ohms
Level	-10 dBu nom
Headphones	1/4" Stereo
Impedance	8 ohms
Level	1/3 watt per channel
Misc
Phone Line Connector	RJ11C
Ringer	0.5B REN
Isolation	3750 VAC
Power	100-240 VAC, 50-60Hz External Power Supply or Two 9 VDC Batteries
Size	7.75” x 6.5” x 2.3”
Weight	2.1 lbs (960 g)

*HD Voice: While standard phone calls have a narrow bandwidth of 300 Hz to 3.4 kHz, HD Voice calls offer 50 Hz to 7 kHz bandwidth. The additional 1.5 octaves on the low end gives voice a more natural sound, while the additional upper octave dramatically improves speech clarity and intelligibility.

*Wireless HD Calls: To take advantage of this extended bandwidth, both phones on the call must support HD Voice, and both phones must be on the same carrier, in coverage areas that support HD Voice.
