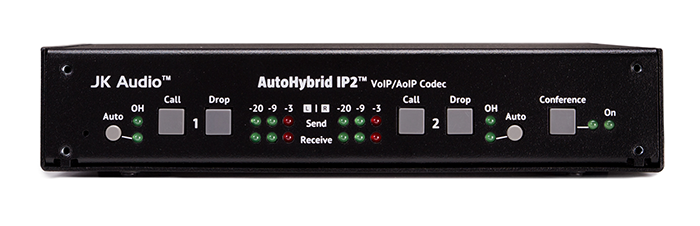

AutoHybrid IP2™ works in place of a VoIP telephone, providing high quality audio connections for broadcast or conference room installations. This half-rack design has the front panel call control features of a traditional hybrid, with additional audio features like Ducking, AGC, and Test Tones accessed through the web interface.
AutoHybrid IP2 is designed for a variety of broadcast applications, from talk shows and interviews, to IFB and program feeds. The front panel user interface makes it a perfect fit for courtroom, conference room, and classroom audio applications.
Installation is similar to adding any VoIP telephone. Initial setup requires VoIP/SIP account information from your IT systems administrator (Asterisk, Avaya, Cisco CUCM…) or VoIP service provider (OnSIP, RingCentral, sip.audio…). Lines 1 & 2 can be configured as two numbers under one account, or separate lines on two different accounts. Download our Compatibility Guide for a list of compatible VoIP service providers.
Features |
Front panel Answer, Drop, Auto-Answer, and Conference |
Caller ID and phone number/address entry on Web Browser |
G.711, G.722, G.729, Opus voice-band, and more… |
24-bit AoIP Stereo Codec |
AGC (Automatic Gain Control) |
Caller Ducking (Attenuates caller when talent is talking) |
Transmit & Receive tone generator |
Send and Receive LED Metering |

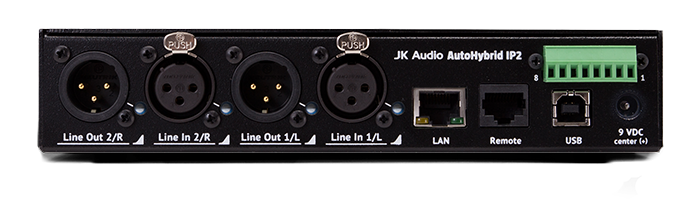

Female XLR Line Input (2) |
Male XLR Line Output (2) |
LAN, USB, Remote Control Connections |
Rear Panel Recessed Level Controls |
Remote Control I/O Terminal Block |
PoE or AC Mains Powered |
Optional RA2 Rack Mount Adapter |
Made in America |
Approved for Sale in Europe and Australia |
Accessories |
![]() RA2
|
AutoHybrid IP2™ also functions as an Audio over IP (AoIP) Codec, streaming wide-band stereo audio. In AoIP mode, the XLR jacks provide stereo send and receive audio.
The AutoHybrid IP2™ Remote jack allows easy connection to the JK Audio Interchange™ Intercom Phone Bridge, offering an auto-answer VoIP connection into your party-line intercom.
Low power consumption for Power over Ethernet (PoE) applications. External power supply included for LAN connections without PoE capability.

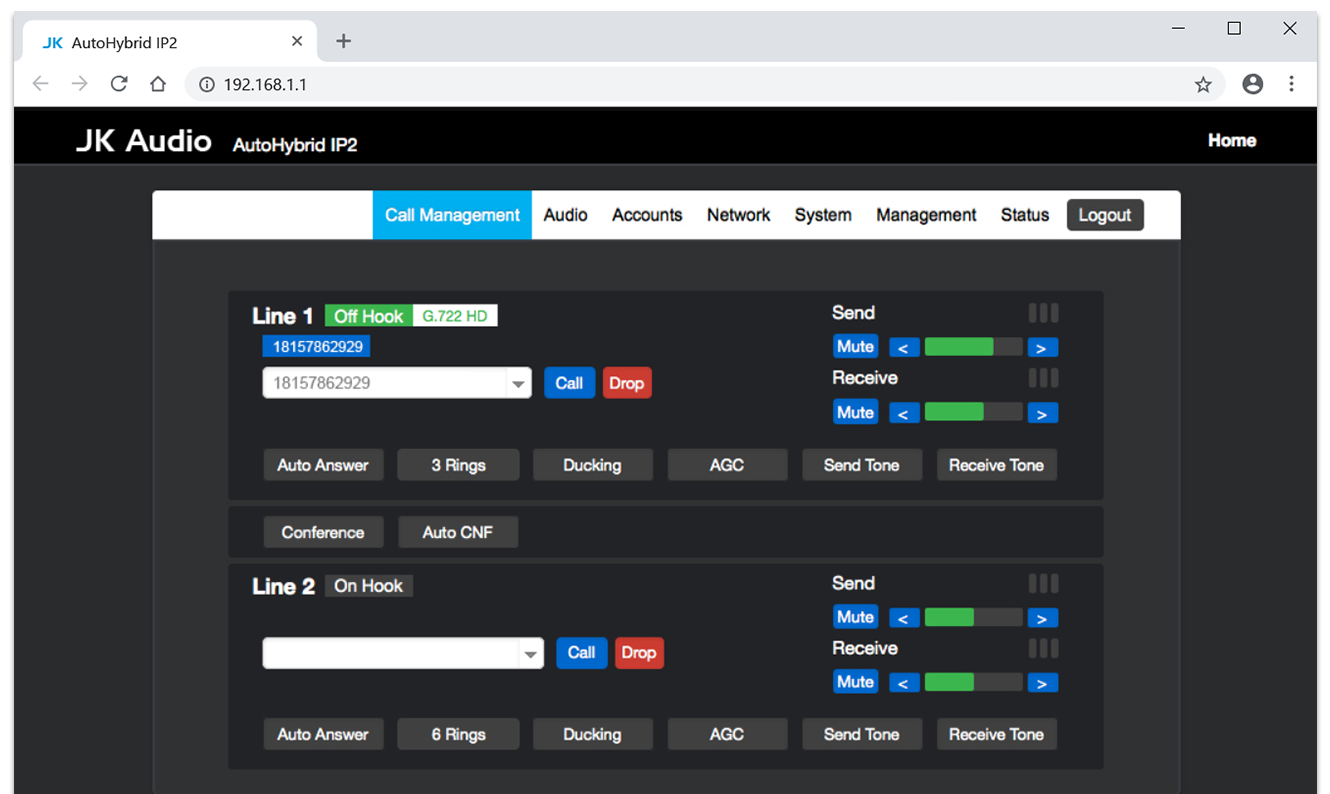

Connect AutoHybrid IP2 to your network hub or router for system setup and installation using the web browser on your computer. The Web Browser User Interface also provides advanced call control features for remote operation.
Tech Reports | |
HD Voice Primer | |
Mix Minus What? |
Downloads | |
Datasheet (288 kb) | |
User Guide (449 kb) | |
VoIP/SIP Compatibility Guide (43 kb) | |
Cisco Unified Call Manager (CUCM) Installation Guide (2.79 mb) |
Product Registration | |
Register your product to receive firmware updates |
Specifications | |
Input | Female XLR |
Impedance | 20k ohms |
Level | 500 mV RMS (-4 dBu nom) +12 dBu max |
Output | Balanced Male XLR |
Impedance | 50 ohms |
Level | 500 mV RMS (-4 dBu nom) +12 dBu max |
Misc | |
Latest Firmware | Build 091364. |
Remote Jack | RJ50 Proprietary interface to JK Audio products |
Remote Header | Removable screw terminal block: Call, Drop, Ring/OH LED, GND (x2) |
Power | PoE (Power over Ethernet) or +9 VDC with included AC power supply |
Size | 7.6” x 5.3” x 1.5” (20 x 14 x 4 cm) |
Weight | 1.2 lbs (0.5 kg) |
