innkeeper PBX

VoIP/PBX Digital Hybrid

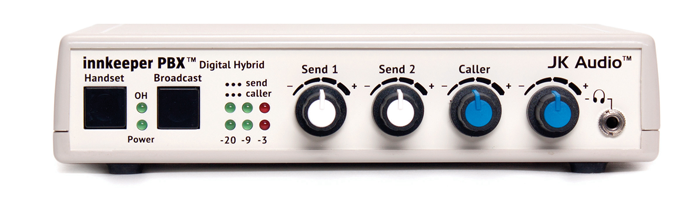

JK Audio innkeeper PBX Front

The Broadcast Host for PBX Phone Lines.

Innkeeper PBX easily converts your multi-line PBX type telephone system into a professional, affordable talk show console. Simply connect between your telephone handset and the phone base. So simple, anyone can do it. The digital hybrid connects audio signals to your PBX type telephone system through the telephone handset cord. Innkeeper PBX provides connections for a microphone, headphones, mixer, sound card, and telephone handset. The stereo output jack on the back of the unit provides your voice on one channel and only the caller’s voice on the other channel. The balanced XLR output jack contains only the caller’s voice. The Handset and Broadcast buttons select between talking on the handset, or sending and receiving through the audio connections.

Learn More Details Specs

Product Details

Features PBX UH
Excellent Separation of Caller and Talent Voice
16-bit DSP technology
16-bit USB Audio CODEC
Proprietary Auto Null Algorithm (50 dB null)
Send XLR Line Input
Mic/Line Switch
3.5 mm Mono Line Input
Caller XLR Line Output
3.5 mm Stereo Line Output
3.5 mm Stereo Headphone Jack
Send and Caller Signal Level LEDs
Send and Caller Volume Controls
Handset Selector Switch
(Electret, Carbon, Dynamic)
Made in America
Approved for Sale in Europe and Australia

Digital Signal Processor

The digital hybrid connects audio signals to a standard analog telephone line without the transmit / receive crosstalk common to analog hybrids. The Digital Signal Processor (DSP) continuously monitors both the phone line and audio signals to deliver excellent separation. This proprietary, dual-convergence echo canceller algorithm can achieve excellent separation, typically exceeding 50 dB, without any setup and without sending a noise burst down the line.

Talk Shows

Connect Innkeeper PBX between your console and your existing multi-line telephone. Your producer can screen callers from another phone while you take callers on the air by simply selecting available lines on your phone.

Interviews

Use Innkeeper PBX in your newsroom to record high quality interviews. Connect a mic and headphones to your PBX telephone while maintaining excellent separation between your voice and the caller. You can upload your recorded interview to your podcast.

Conference Rooms

Easily connect your PA system to the existing PBX telephone system. The echo canceller algorithm can prevent feedback and allow full duplex conversations

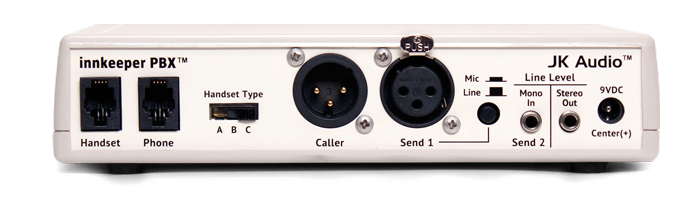

JK Audio innkeeper PBX Back

Specs

Specifications
Send 1 Balanced Female XLR
Impedance 1k ohms
Level 15 mV RMS (-34 dBu nom)
Mic/Line Pad Switch +6 dBu max
Send 2 1/8" (3.5mm) Mono
Impedance 20k ohms
Level 250 mV RMS (-10 dBu nom)
Caller Out Balanced Male XLR
Impedance 200 ohms
Level 500 mV RMS (-4 dBu nom, +14 dBu max)
Caller Only
Stereo Out 1/8" (3.5mm)
Impedance 50 ohms
Level 250 mV RMS (-10 dBu nom, +6 dBu max)
Left = Send, Right = Caller
Headphone 1/8" (3.5mm)
Impedance 8 ohms
Level 250 mW
Mixed Send and Caller
Misc
Phone Line Connector RJ22
Aux Phone Connector RJ22
Isolation 1500 VAC
Frequency Response Telephone Side: 200 Hz-3600 Hz
Power 120-240 VAC Power Supply
Size 7" x 6" x 1.6" (18 x 15 x 4.2 cm)
Weight 2.2 lbs. (1kg)
