RemoteMix x4

4 Channel Field Mixer

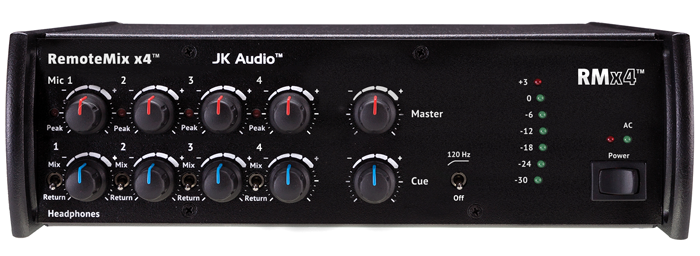

JK Audio RemoteMix x4 Front

Mix It Up.

RMx4™ combines a four-channel field mixer with a four-channel headphone amplifier. After all, what good is a field mixer if you do not have a flexible monitoring capability for the whole crew? 3.5 mm send and receive jacks for recording or playing back of recorded material. Separate headphone level and source selection controls for each headphone output. Monitor just the clean mixer output, or the Cue input plus the mix.

Learn More Details Specs

Product Details

Features
Four Low Noise, High Headroom, XLR Mic Inputs
Mic/Line Switches on Channels 3 & 4
Individually Switchable 48v Phantom Power
120 Hz Low Cut Filter
Master XLR Output 20 Hz – 20 kHz
Four ¼” Headphone Jacks with Individual Source Selector and Level Controls
¼” Headphone Cue Input
Phone Headset Interface with 3.5 mm TRRS Plug
3.5 mm Stereo Line Input
3.5 mm Stereo Line Output
LED VU Meter
Hot Swappable Dual 9V Batteries and 120-240 VAC External Power Supply
Made in America
Approved for Sale in Europe and Australia

Great Sound

Four low noise, high headroom active balanced mic inputs feature extremely high common mode rejection for outstanding cable noise immunity. High-Pass filter removes room rumble and mic handling noise. Direct drive DC coupled XLR output for improved output cable noise immunity. A soft limiter prevents overdriving the full-duplex headset interface, while the master XLR and 3.5 mm outputs are pre-limiter (full range).

Power Smart Design

Phantom power is not always needed, yet it can be a real drain on batteries. The phantom power generator only runs if any of the rear panel 48 V switches are set to “ON” position. Low noise, low power ICs are used throughout to preserve battery life. The 100-240 VAC desktop style power supply (included) overrides the battery power only when the supply is actually providing power. If the power goes out, the batteries automatically cut in. Use one battery or two. Separate compartments for hot swapping batteries.

Radio/Podcast

RMx4 is designed for news, sports, and live remotes. Use it as a front-end mixer for your POTS, ISDN, IP or smart phone codec. XLR out, ¼” return to headphones.

TV/AV

RMx4 is designed for ENG, Sports, and interviews, with four ¼” headphone outputs. 3.5 mm TRRS provides 2-way IFB audio from your cell phone or notebook.

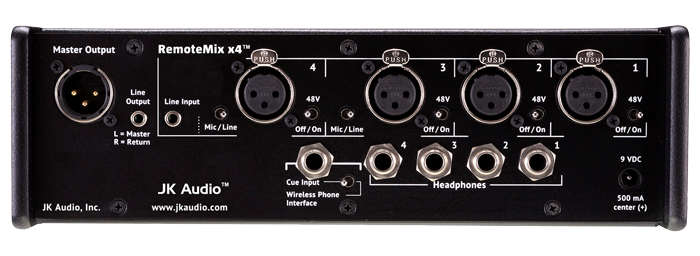

JK Audio RemoteMix x4 Back

Specs

Specifications
Microphones Female XLR
Impedance Mic Level: 2k ohms
Line Level: 50k ohms
Level Mic Level: -25 dBu nom
Line Level: +20 dBu max
Mic/Line Pad Switch -40 dB
Phantom Power 48 VDC with 6.8k ohm Supply Resistance
Line Input 1/8" (3.5mm) Stereo
Impedance 20k ohms
Level -10 dBu nom
Headphone Cue In 1/4" Mono
Impedance 20k ohms
Level -10 dBu nom
Master Output Balanced Male XLR
Impedance 50 ohms
Level +16 dBu max
Frequency Response 20 Hz - 20 kHz +/- 1dB
THD 0.04% THD @ +16 dBu
Line Output 1/8" (3.5mm) Stereo
Impedance 100 ohms
Level -10 dBu nom
Headphones 1/4" Stereo
Impedance 8 ohms
Level 1/3 watt per channel
Misc
Power 100-240 VAC, 50-60Hz External Power Supply or Two 9 VDC Batteries
Size 9.5" x 8" x 3" (24 x 20 x 8 cm)
Weight 3.6 lbs (1.6 kg)
