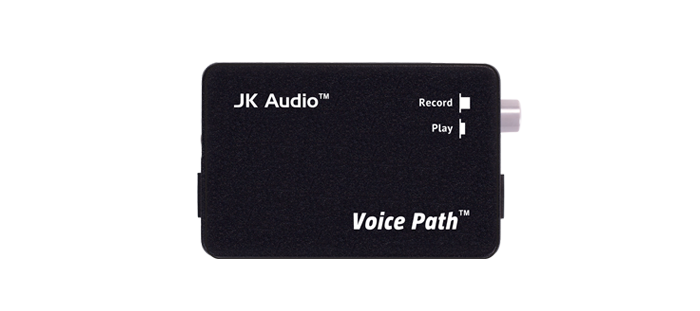

Voice Path

Telephone Handset Audio Tap

1/8" (3.5mm) Input/Output
Passive Design

Tap Your Phone with 3.5mm Mini Jacks.

Voice Path continuously routes both sides of your conversation to the mic input of your PC (or Mac) sound card. Simply press in the gray button when you are ready to play audio recordings back into the phone line. With the button in, Voice Path will disconnect the microphone from your handset and send audio down the phone line and into your receiver. You will hear the transmit audio as well as the voice from the other end of the call.

Learn More Details Specs

Product Details

Featured Products
QT	QuickTap
T1	THAT-1
T2	THAT-2
VP	Voice Path

Features	QT	T1	T2	VP
Works with Analog, Digital, PBX, or VoIP Telephones
1/8" (3.5mm) Mono Audio Input
1/8" (3.5mm) Mono Audio Output
RCA Input & Output
XLR Input & Output
Input Level Control
Output Level Control
Switch Selects Between Carbon, Dynamic or Electret Handset Types
Passive Design. No Battery or AC Required
Made in America
Approved for Sale in Europe and Australia

Record and
Play Audio Clips

Endless possibilities such as: News rooms, Weather and Traffic reports, Ad Creation and Proofing, Transcribing, Voice Mail Prompts, Production Room...Simply connect between the handset and base of your telephone. The attached cables connect directly to the in and out jacks of your sound card. Use your PC software to record, edit, and then play your conversation right back into the phone line.

Phone Compatibility

When sending audio into a telephone, Voice Path must emulate the microphone that is in the handset. A switch on the back of Voice Path allows you select between the three basic types of handset microphone: electret, dynamic, and carbon. Signal level to the PC sound card is also adjustable. Voice Path will not work with telephones that have a keypad in the handset.

Specs

Tech Reports
	Recording Telephone Interviews

Downloads
	Datasheet (62 kb)
	User Guide (146 kb)

Specifications
Input - Left Channel Only	1/8" (3.5mm) Mono
Impedance	10k ohms
Level	250 mV nominal
Output	1/8" (3.5mm) Mono
Impedance	2800 ohms
Level	100 mV max
Misc
Handset Type	Electret, Dynamic, Carbon
Handset and Telephone Connectors	RJ22
Handset Cable	18" Flat Cable (Provided)
Size	3" x 1" x 2" (7.6 x 2.5 x 5.1 cm)
Weight	9 oz
