This Product has been discontinued.

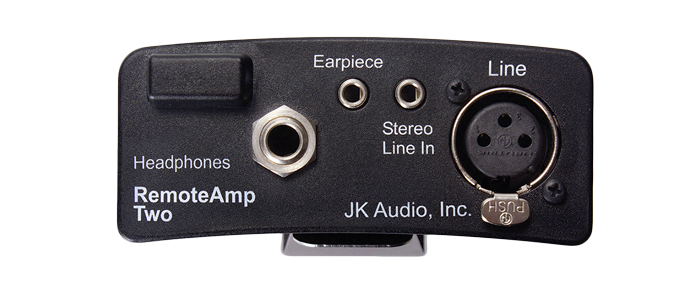

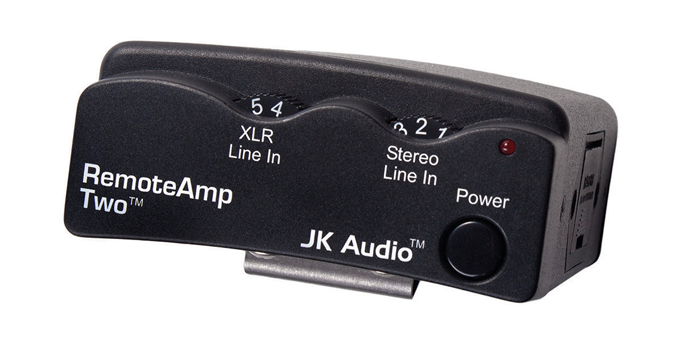

RemoteAmp Two

Discontinued
Stereo Headphone Amplifier

1/4" Stereo Headphone Jack
XLR Line Input with Volume Control
3.5 mm Stereo Line Input Jack
with Volume Control

Mono IFB Plus Stereo Audio Input.

RemoteAmp Two provides a listen only connection for mono IFB or full bandwidth stereo music listening. Separate volume controls for the XLR and 3.5 mm line input jacks allow a simple mix of mono and stereo sources. The XLR line level input accepts either a balanced mono signal, or a party line intercom feed (listen-only). The ½ watt, ¼” stereo headphone jack will cut through any crowd noise. Connect an IFB earpiece to the 3.5 mm earpiece jack for mono operation.

Learn More Details Specs

Product Details

Featured Products
RA	RemoteAmp
R2	RemoteAmp Two

Features	RA	R2
Compatible with TW (Two-Wire) Party-Line Intercoms (Listen-Only)
XLR Line level Input
1/8" (3.5mm) Stereo Line Input Jack
1 Master Level Control
2 Independent Level Controls
Hi-Z/Lo-Z Termination of 3.5mm Input
1/4" Stereo Headphone Jack
1/8" (3.5mm) Stereo Headphone Jack
Stainless Steel Belt Clip
>20 Hours on one 9V Battery
Made in America
Approved for Sale in Europe and Australia

Specs

Downloads
	Datasheet (147 kb)
	User Guide (148 kb)

Specifications
Line Input	Female XLR	1/8" (3.5mm) Line In
Impedance	4k ohms	20k ohms; Switchable to 50 ohms
Level	100 mV RMS (-18 dBu nom, +12 dBu max)	-10 dBu nom.
Headphones	1/4" Stereo	1/8" (3.5mm) Stereo
Impedance	8 ohms	10 ohms
Level	500 mW per channel	430 mW per channel
Misc
Stereo Separation	55 dB
Frequency Response	20 Hz - 20 kHz
Power	One 9 volt Alkaline Battery
Size	5.1" x 2.7" x 1.3" (13 x 6.9 x 3.3 cm)
Weight	10 oz. (275 g)
