JK Audio introduces a modular family of talk show system components. Each system requires at least one Concierge™ switch core, at least one Innkeeper 1rx or one Innkeeper 2 digital hybrid, and at least one Guest Module control surface. Guest Modules are hot swappable without losing calls, and feature line selection buttons that change color to indicate call status. The Guest Module Series features durable aluminum and steel construction with a sealed rubber keypad.
Features |
LED Line Selection Buttons |
Next, Previous, Hold & Drop Functions |
Auto Answer |
Conference Calling (not on GM1x6) |
Hot-Swappable |
DTMF Keypad |
Aluminum and Steel Construction |
Made in America |
Approved for Sale in Europe and Australia |

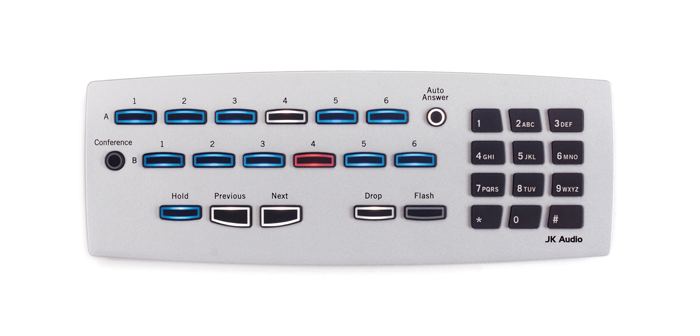

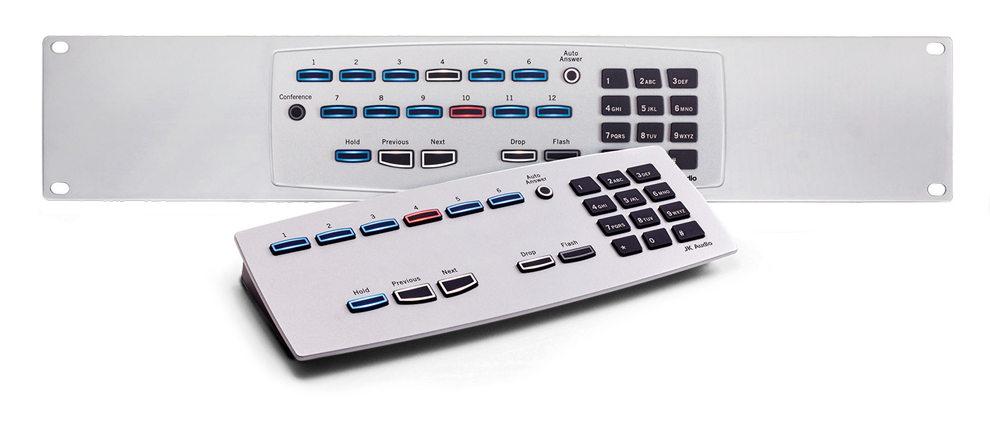

Up to eight Guest Module control surfaces can be added to provide remote control of the switch matrix over CAT5 cable. Guest Modules are available in GM1x6, GM2x6, and GM1x12 desktop and rack mount versions.
Downloads | |
Datasheet (285 kb) | |
User Guide (222 kb) |
Specifications | |
Desktop Dimensions | GM1x6, GM2x6, GM1x12 |
Size | 9.5” x 3.5” x 1.2” (24 x 9 x 3 cm) |
Weight | 1.25 lbs (0.5 kg) |
Rack Mount Dimensions | GM1x6r, GM2x6r, GM1x12r |
Size | 19” x 3.5” x 1.2” (48 x 9 x 3 cm) |
Weight | 1.75 lbs (0.8 kg) |
