BlueSet

Wireless Headset Interface

Bluetooth Wireless Technology
Electret / Dynamic Headset Compatibility
HD Voice (Wide-Band Speech)

Communications Unleashed.

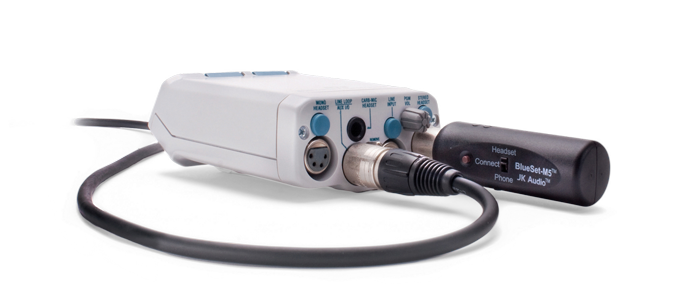

These headset interfaces plug directly into most Party- Line (PL) belt packs, replacing the wired headset. A 3.5 mm stereo headset jack contains a mic level output signal suitable for recording, with the beltpack headphone signal on the left channel, and the Bluetooth return signal on the right. A switch selects between connection to a 3rd party Bluetooth headset or a cell phone.

Learn More Details Spec

Product Details

Features
Electret / Dynamic Headset Compatibility
HD Voice Compatible (Wide-Band Speech)
Bluetooth Wireless Technology
Mini USB power jack
>6 hours on Internal Li-Ion Battery
Trim pot adjusts Bluetooth Return
Made in America
Approved for Sale in Europe and Australia

Headset Connect

Pair BlueSet to your Bluetooth headset. Leave your belt pack on the desk as you walk around the room.

Phone Connect

Pair BlueSet to your cell phone to extend your system around the world. The belt pack Mic/Talk button controls audio from the cell phone into the intercom system.

HD Voice

BluePack now features HD Voice technology, allowing 7 kHz Wide Band Speech when used with compatible phones on compatible networks. Read our HD Voice primer for more details.

Intercom Headset Compatibility

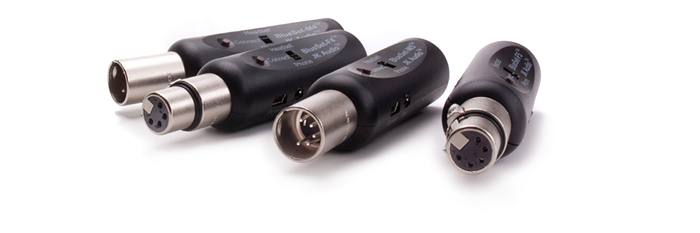

Female and Male XLR four and five pin versions available:
BlueSet-F4, BlueSet-F5, BlueSet-M4, BlueSet-M5

Specs

Tech Reports
	HD Voice Primer
	Wireless Phone Compatibility
	About Bluetooth Wireless Technology

Downloads
	Datasheet (135 kb)
	User Guide (351 kb)

Specifications
Output	1/8" (3.5 mm) stereo
Impedance	1000 ohms
Level	15 mV RMS (-34 dBu nom)
Bluetooth Wireless Technology
Standard	Bluetooth 3.0
Distance	66 ft (20 m)
Frequency Response	Hands-Free (Full Duplex): 300 Hz– 3.4 kHz Hands-Free (Full Duplex HD): 50 Hz– 7 kHz
XLR Pinout
Pin 1	Headset Mic (low)
Pin 2	Headset Mic (high)
Pin 3	Headphone (low)
Pin 4	Headphone (high)
Pins 4 & 5 are mixed together on BlueSet F5/M5 to accomodate dual-sided headsets.
Pin 5	Headphone (high)
Misc
Connector	Mini-USB Series B
Battery	Internal Lithium-Ion Polymer rechargeable
Size	1.1” x 4.4” (2.8 cm x 11.2 cm)
Weight	2.1 oz (60 g)

*HD Voice: While standard phone calls have a narrow bandwidth of 300 Hz to 3.4 kHz, HD Voice calls offer 50 Hz to 7 kHz bandwidth. The additional 1.5 octaves on the low end gives voice a more natural sound, while the additional upper octave dramatically improves speech clarity and intelligibility.

*Wireless HD Calls: To take advantage of this extended bandwidth, both phones on the call must support HD Voice, and both phones must be on the same carrier, in coverage areas that support HD Voice.
